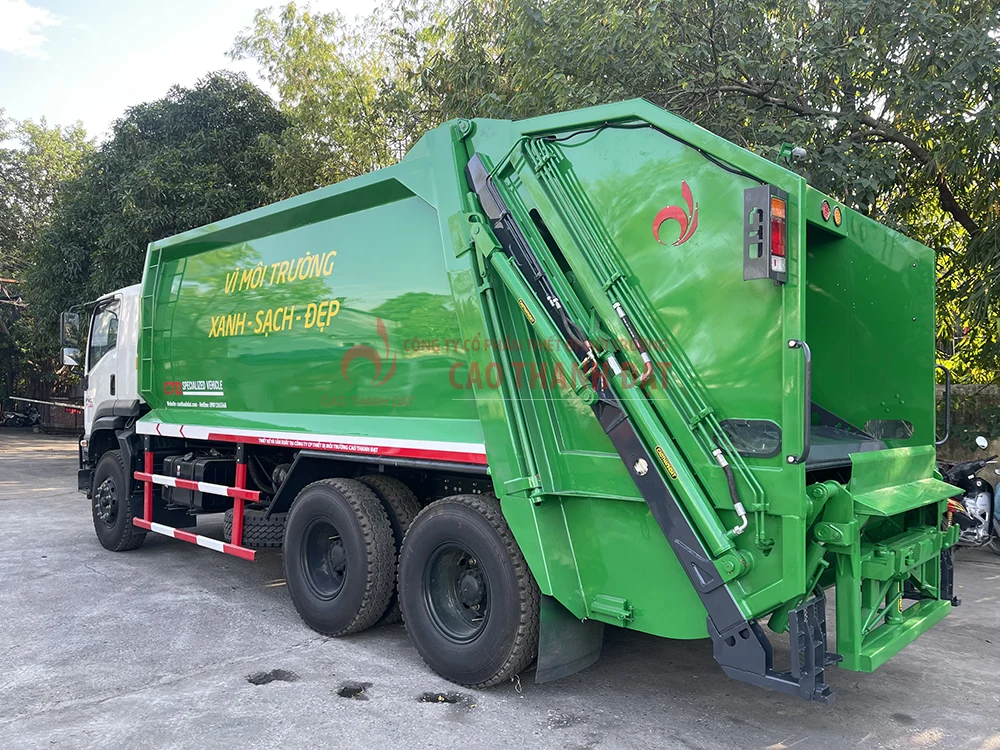

Isuzu Garbage Truck 22m3 Euro 4 (Bin lifting)

Isuzu Garbage Truck 22m3 (Bin Lifting) is a specialized vehicle designed to collect, transport and compress waste effectively and economically. With the chassis platform of Isuzu truck – a famous Japanese brand, Isuzu garbage truck owns a durable, high-performance engine, helping to improve work efficiency in collecting and processing urban waste, and transferring waste.

Isuzu garbage trucks are widely used in collecting household waste, industrial waste, medical waste and areas requiring environmental sanitation, providing optimal solutions for cities, industrial zones, construction sites, hospitals, schools, and residential areas. Depending on the collection model, users can choose the bin lifting mechanism or the bucket mechanism.

I. Structure and features.

1. Isuzu chassis and engine

• Isuzu chassis is designed to be sturdy, durable and suitable for road conditions in Vietnam, especially areas with narrow, rough roads. Vehicles with a 22m³ container are often used in large-scale waste collection, transferring waste from the landfill to the waste treatment plant.
• The powerful engine of the Isuzu garbage truck uses Common Rail technology, helping the vehicle save fuel and meet Euro 4 international emission standards, protecting the environment during operation.

2. Garbage compacting system

• The garbage compacting system of the Isuzu garbage truck designed by Cao Thanh Dat uses large diameter hydraulic cylinders to compress the garbage into the container. This not only helps increase the efficiency of space use, reduce the number of transportations, but also minimizes labor and optimizes the work process.

3. Trash container

• The trash container is made of anti-corrosion steel, has high durability and good load-bearing capacity, ensuring safety when transporting all types of waste.
• The container is designed for easy cleaning and has a sealing system, helping to prevent odors and protect the environment during transportation.

II. Technical specifications

SPECIFICATIONS	ISUZU GARBAGE TRUCK 22M3 (BIN LIFTING)
Brand, Model	ISUZU FVZ34QE4A/CTD-CER
Gross weight	24.000 Kg
Wheelbase	4.115+1370 mm
Container volume	22 m3
Overall dimension (LxWxH)	8.890 x 2.500 x 3.460 mm
Engine	6HK1E4SC
Max power (ISO NET)	206 – 2.400 (Kw-RPM)
Engine displacement	7.790 cm3
Tires	11.00-R20
Material	Perform 700 – thyssenkrupp (Germany) Hardox 450 – SSAB (Sweden)
Compact force	10.000 kgf
Hydraulic system	Imported from Europe
Control system	– Manual – Automatic
Trash collecting mechanism	Multi-functional bin lifting
Optional equipment	– Camera for monitoring inside tailgate – Automatic compacting system – Deodorizing system – Hydraulic error reporting system

III. Outstanding advantages

• Powerful and fuel-efficient engine: Isuzu garbage truck uses advanced, fuel-efficient engines that meet Euro 4 emission standards, protecting the environment and helping to reduce operating costs.
• Efficient hydraulic pressing system: The vehicle can compress garbage quickly and effectively, helping to save storage space and reduce transportation frequency.
• Durable chassis, easy to operate: The vehicle has good load capacity and can operate on many types of terrain, helping to maintain high performance throughout the working process.
• Spacious and comfortable cabin: The cabin of the Isuzu garbage truck is designed to be modern and comfortable, creating conditions for the driver to work in the best environment, minimizing fatigue during long working days.
• Easy maintenance and repair: Isuzu has an extensive maintenance network, quality after-sales service and reasonable maintenance costs, helping owners save operating costs.

IV. Application

• Household waste collection: Isuzu garbage trucks are often used to collect waste in residential areas, urban areas, schools, and hospitals.
• Environmental sanitation: Public areas, parks, and crowded areas need to be maintained regularly.
• Industrial waste collection: Transport waste from industrial parks, factories, and waste dumps.
• Transporting hazardous waste: Isuzu garbage trucks can also be used to collect and transport hazardous waste from hospitals, laboratories, manufacturing facilities, etc.
