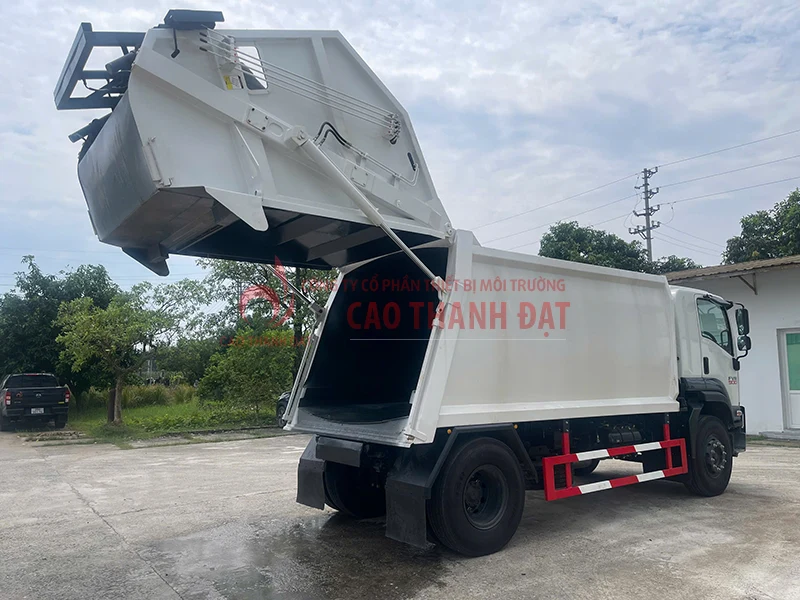

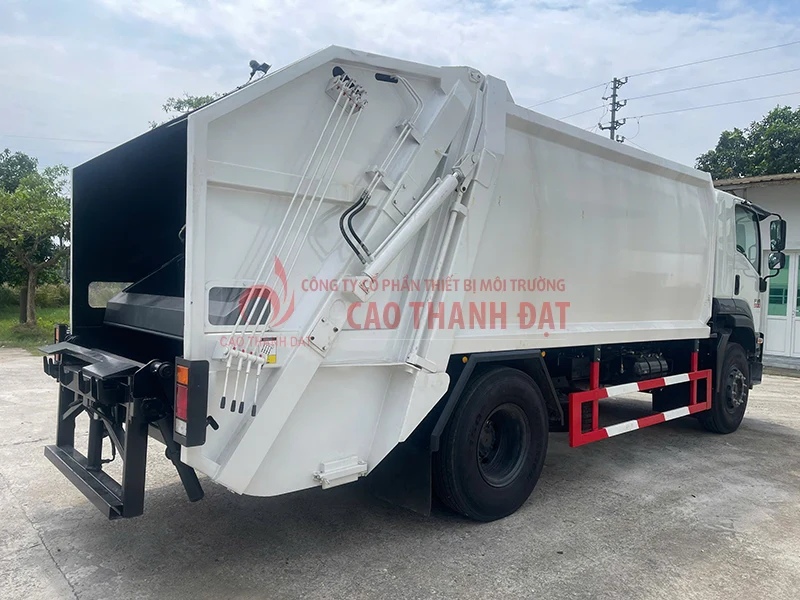

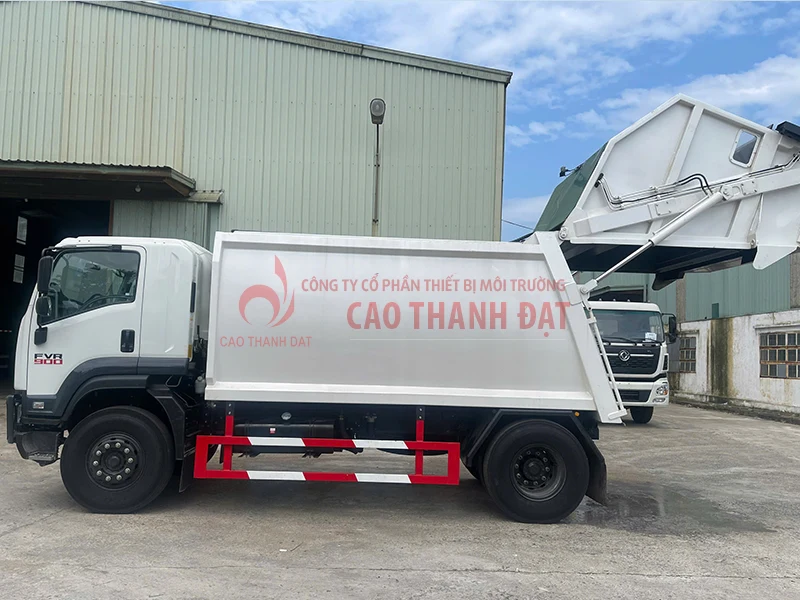

Isuzu 14m3 Garbage Compactor (Grapple) is a specialized vehicle designed to collect, transport and compress waste efficiently and economically. With the chassis platform of Isuzu truck – a famous Japanese brand, Isuzu garbage compactor owns a durable, high-performance engine and modern technology, helping to improve work efficiency in collecting and processing urban waste, industrial parks or densely populated areas.
Isuzu Garbage Trucks are widely used in collecting household waste, industrial waste, medical waste and areas requiring environmental sanitation, providing optimal solutions for cities, industrial zones, construction sites, hospitals, schools, and residential areas. Depending on the collection model, users can choose the bin lifting or bucket mechanism.
I. Structure and features.
1. Isuzu chassis and engine
- Isuzu chassis is designed to be sturdy, durable and suitable for road conditions in Vietnam, especially areas with narrow, rough roads. Vehicles with a tank capacity of 14m³ or more are often used in large-scale garbage collection.
- The powerful engine of the Isuzu garbage compactor uses Common Rail technology, helping the vehicle save fuel and meet Euro 5 international emission standards, protecting the environment during operation.
2. Garbage compacting system
- The garbage compacting system of the Isuzu garbage compactor designed by Cao Thanh Dat uses a large diameter hydraulic cylinder to compress the garbage into the container. This not only helps to increase the efficiency of space use, reduce the number of transportations, but also minimizes labor and optimizes the work process.
3. Trash container
- The trash bin is made of anti-corrosion steel, has high durability and good load-bearing capacity, ensuring safety when transporting all types of waste.
- The container is designed for easy cleaning and has a sealed gasket system, helping to prevent odors and protect the environment during transportation.
II. Technical specifications
| SPECIFICATIONS | ISUZU GARBAGE TRUCK 14M3 (BIN LIFTING) |
|---|---|
| Brand, Model | ISUZU FVR34LE5/CTĐ-CER |
| Gross weight | 16.000 Kg |
| Wheelbase | 4.300 mm |
| Container volume | 14 m3 |
| Overall dimension (LxWxH) | 8.100 x 2.500 x 3.200 mm |
| Engine | 6HK1E5NR |
| Max power (ISO NET) | 177 – 2.400 (Kw-RPM) |
| Engine displacement | 7.790 cm3 |
| Tires | 8.25-16 |
| Material | Perform 700 – thyssenkrupp (Germany) Hardox 450 – SSAB (Sweden) |
| Compact force | 10.000 kgf |
| Hydraulic system | Imported from Europe |
| Control system | – Manual – Automatic |
| Collecting system | Multi-functional bin lifting |
| Optional equipment | – Camera for monitoring inside tailgate – Automatic compacting system – Deodorizing system – Hydraulic error reporting system |
III. Outstanding advantages
- Powerful and fuel-efficient engine : Isuzu garbage compactor uses advanced, fuel-efficient engines that meet Euro 5 emission standards, protecting the environment and helping to reduce operating costs.
- Efficient hydraulic rolling and pressing system : The vehicle can roll and compress garbage quickly and effectively, helping to save storage space and reduce transportation frequency.
- Durable chassis, easy to operate : The vehicle has good load capacity and can operate on many types of terrain, helping to maintain high performance throughout the working process.
- Spacious and comfortable cabin: The cabin of the Isuzu garbage truck is designed to be modern and comfortable, creating conditions for the driver to work in the best environment, minimizing fatigue during long working days.
- Easy maintenance and repair : Isuzu has a wide maintenance network, quality after-sales service and reasonable maintenance costs, helping owners save operating costs.
IV. Application
- Household waste collection: Isuzu garbage trucks are often used to collect waste in residential areas, urban areas, schools, and hospitals.
- Environmental sanitation: Public areas, parks, and crowded areas need to be maintained regularly.
- Industrial waste collection: Transport waste from industrial parks, factories, and waste dumps.
- Transporting hazardous waste: Isuzu garbage trucks can also be used to collect and transport hazardous waste from hospitals, laboratories, manufacturing facilities, etc.
