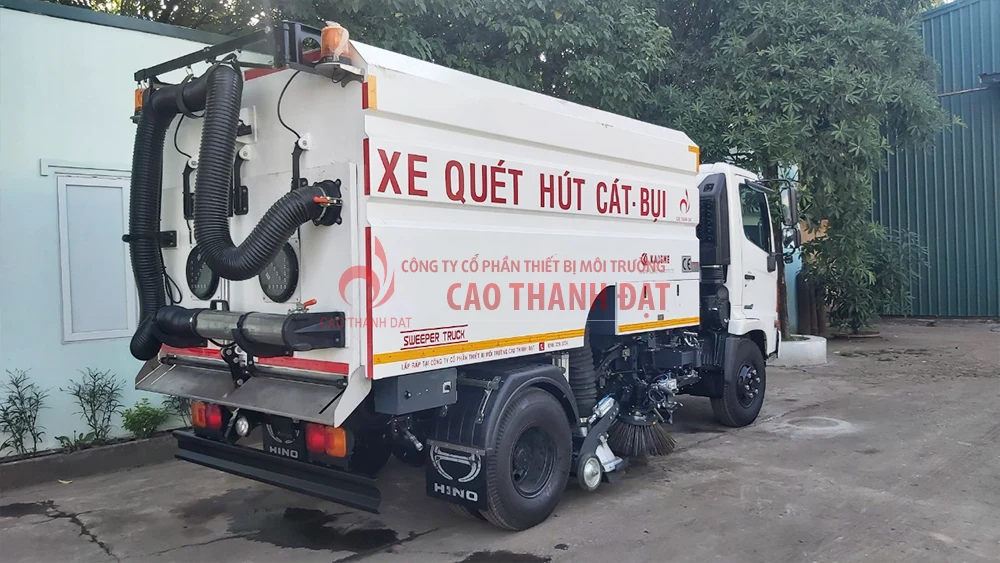

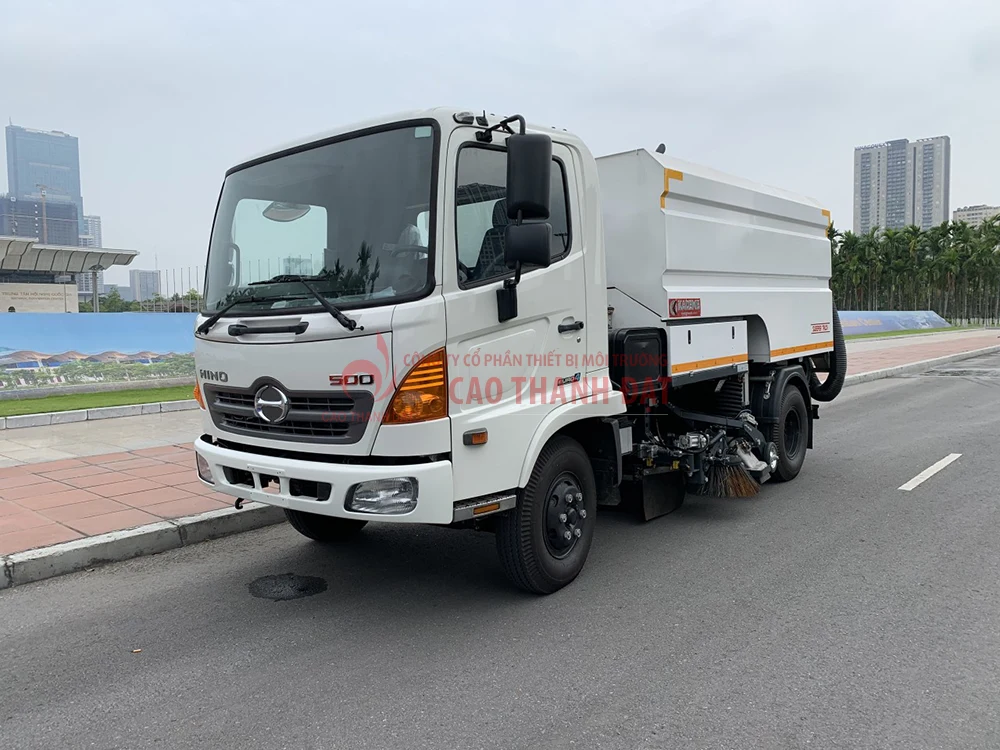

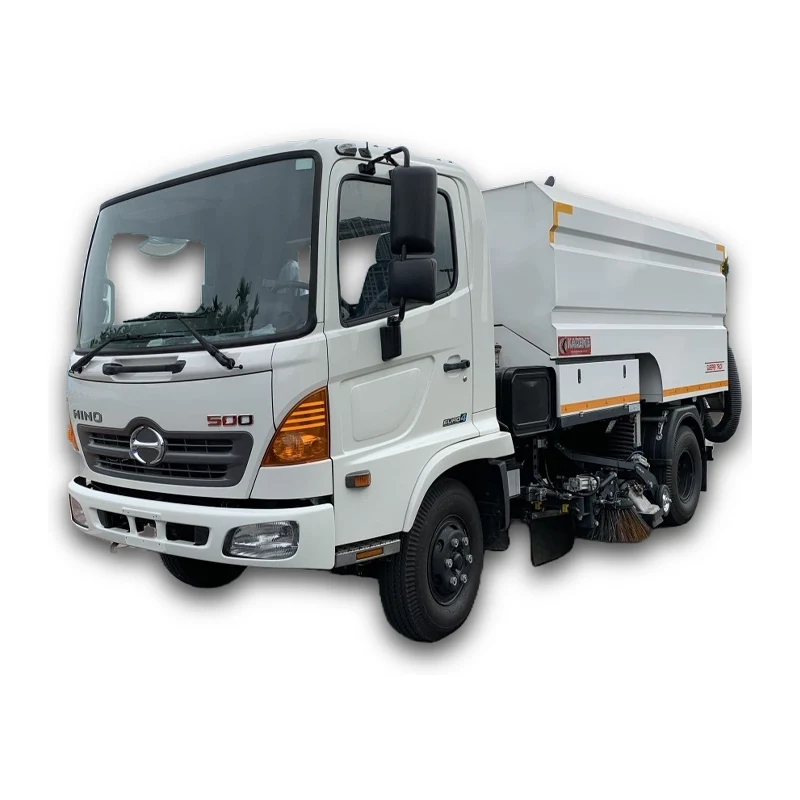

Hino Sweeper Truck (Europe) is a specialized vehicle designed to vacuum and clean streets, industrial zones, ports, and residential areas effectively. The vehicle is assembled by Cao Thanh Dat JSC on the Hino FC chassis – one of the famous mid-range trucks of Hino Motors (Japan), combined with advanced vacuum technology from Europe, ensuring strong suction, no dust emission into the environment, and environmentally friendly.
I. Structure and outstanding features of Hino sweeper truck
1. Strong and durable Hino FC chassis
- Manufactured by Hino Motors Japan, ensuring high durability and good load capacity.
- Euro 4 engine helps save fuel, operate smoothly and reduce emissions.
- Safe braking system, easy to control in urban areas.
2. European technology sweeping system
- Using high flow vacuum technology, helps remove fine dust and small waste on the road.
- High capacity vacuum fan, ensures dust removal over large areas.
- Advanced dust suppression system helps retain fine dust, preventing it from spreading into the environment.
3. Dust and water container
- Large capacity dust container allows continuous operation without frequent emptying.
- Water spray system moistens the road surface, limiting dust from flying back into the air.
4. Modern control system
- In-cabin control panel, simple operation, easy for driver to operate.
- Flexible water nozzles and brushes, suitable for many types of terrain.
- Surveillance cameras make it easier to observe the work area.
II. Specifications of Hino sweeper truck
| SPECIFICATIONS | HINO SWEEPER TRUCK 4M3 |
|---|---|
| Brand, Model | HINO FC9JETC/CTĐ |
| Gross weight | 10.650 Kg |
| Wheelbase | 3.420 mm |
| Dust container volume | 4 m3 |
| Water tank volume | 1.100 lít |
| Overall dimensions (LxWxH) | 6.100 x 2.450 x 2.720 mm |
| Chassis engine | J05E-UA |
| Max power (ISO NET) | 132 – 2.500 (Kw-RPM) |
| Engine displacement | 5.123 cm3 |
| Tires | 8.25-16 |
| Sweeping system | Europe |
| Container material | Stainless steel AISI 304 |
| Fan housing material | Hardox 450 – SSAB |
| Auxiliary engine | Tumosan 4DT-41T-115C |
| Fan speed | 2.800 – 3.500 RPM |
| Side brushes | ⌀ 320 mm, 200 RPM |
| Middle brush | ⌀ 400 mm, 160 RPM |
| Sweeping speed | 0 – 16 km/h |
| Optional equipment | – Hand-held suction nozzle at the rear of the tank – High-pressure water gun – Brush position and speed adjustment system – Side and rear view camera. |
III. Outstanding advantages of Hino sweeper truck
- Modern European technology: Powerful vacuum system helps clean the streets and reduce pollution.
- Fuel saving, economical operation: Hino engine optimizes fuel consumption.
- Large dust container, efficient dust suppression system: Reduces the frequency of emptying, ensuring continuous operation.
- High durability, easy maintenance: Hino FC has common spare parts, easy to repair.
- Suitable for urban and industrial areas: Easy to move on streets, processing zones, residential areas.
IV. Applications of Hino sweeper truck
- Cleaning streets and avenues in major cities.
- Cleaning industrial parks, ports, airports.
- Collect fine dust and small waste in residential areas and commercial centers.
- Support environmental protection, reduce air pollution.
