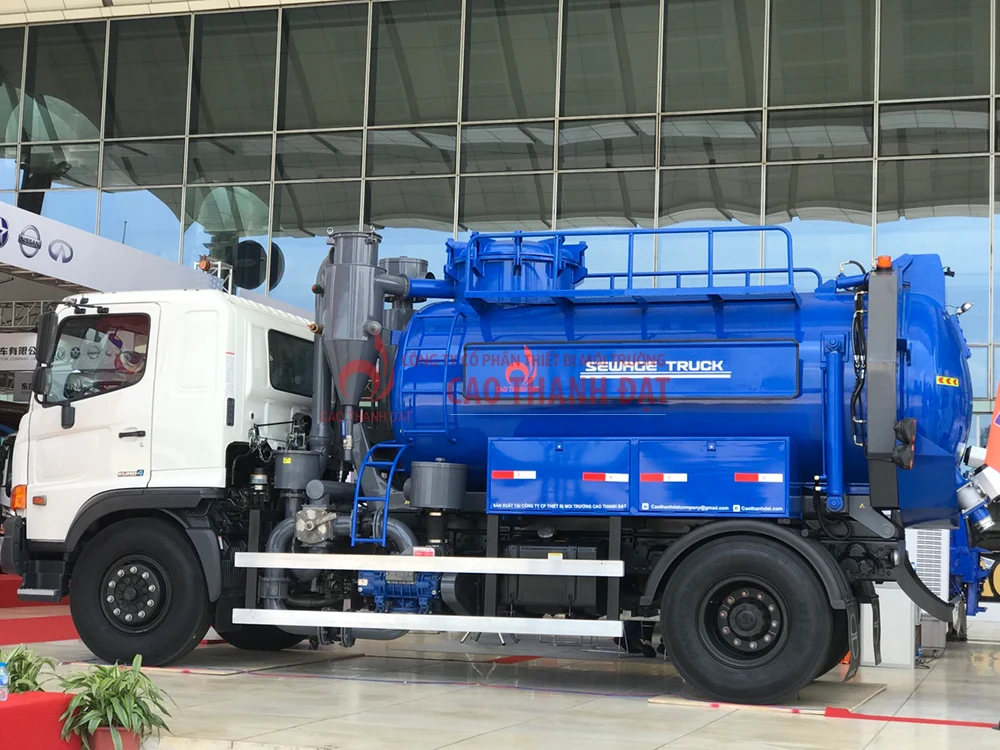

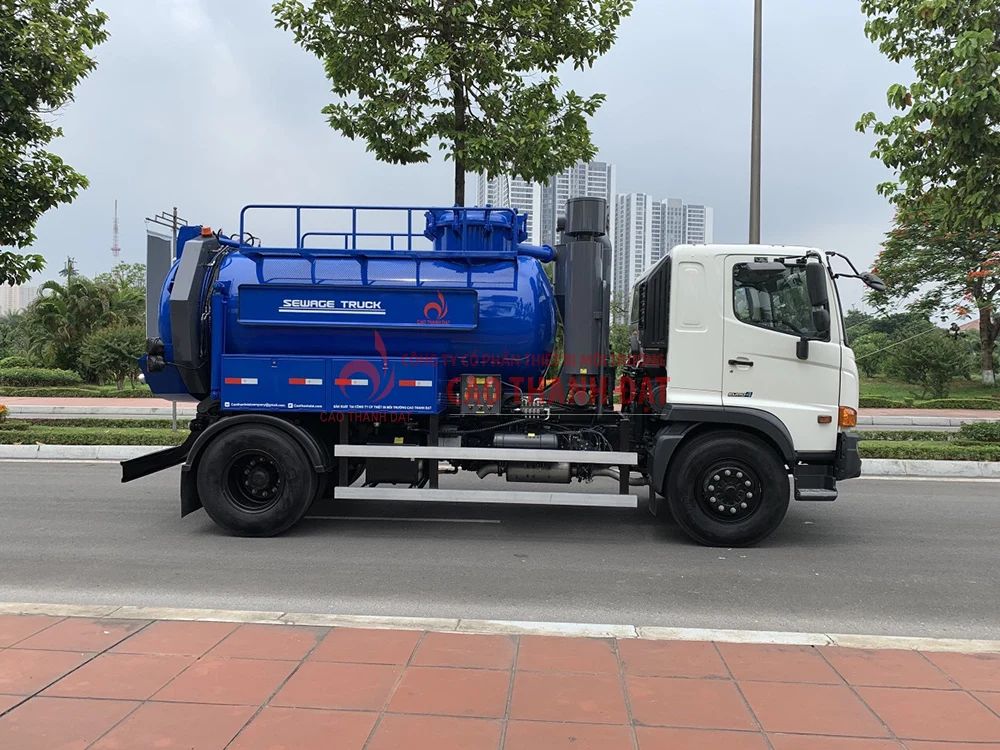

Hino FG 7m³ sewage truck is a specialized vehicle designed by Cao Thanh Dat to collect, transport and process liquid waste such as sludge, domestic wastewater, industrial wastewater… The vehicle is manufactured on the Hino FG truck platform – a prestigious Japanese brand, famous for its durability, fuel economy and powerful operation.
See more other sewage trucks.
I. Structure and outstanding features of Hino FG sewage truck 7m³
1. Hino FG engine and chassis
- The vehicle uses a Hino J08E-WD engine, 6 cylinders, 7,684cc capacity, producing a powerful 260PS capacity, helping the vehicle operate stably even when carrying heavy loads.
- Euro 4 emission standards, fuel efficient and environmentally friendly.
- High strength chassis system, suitable for rough road conditions.
2. Specialized waste tank
- Volume 7m³, made of stainless steel, anti-corrosion, resistant to domestic wastewater and mildly acidic chemicals.
- Cylindrical design makes it easy to discharge waste without sticking, saving cleaning time.
3. Modern vacuum system
- Using lobe vacuum pump, large suction flow, high vacuum, quick tank filling time.
- Lobe pumps do not use water to run like water ring pumps on other vehicles on the market, avoiding rust and shaft jamming when not in use for a long time.
- Vacuum pump imported from Europe, ensuring the highest standards, durability and safety during operation.
4. Easy-to-use, intelligent control system
- Intuitive, easy-to-use control panel located at the rear of the cabin.
- The vacuum system automatically shuts off when the tank is full.
II. Basic technical parameters of Hino FG sewage truck
| SPECIFICATIONS | HINO FG SEWAGE TRUCK 7M3 |
|---|---|
| Brand, Model | HINO FG8JJ7A-B/CTD-HCT |
| Gross weight | 16.000 Kg |
| Wheelbase | 4.330 mm |
| Tank volume | 7 m3 |
| Overall dimensions (LxWxH) | 7.210 x 2.500 x 3.420 mm |
| Engine | J08E-WE |
| Max power (ISO NET) | 191 – 2.500 (Kw-RPM) |
| Engine displacement | 7.684 cm3 |
| Tank material | Q235, Q355 or Inox |
| Vacuum pump | – Type: Lobe pump – Origin: Europe – Air flow: 1600m3/h – Max speed: 4000 rpm – Vacuum: 92% |
| Filtration system | – Lọc tách nước – Lọc sơ cấp – Lọc khí đầu vào – Giảm thanh – Lọc khí đầu ra |
| Tank filling time | 10 mins |
| Tires | 11.00R20 |
| Hydraulic system | Imported from Europe |
| Control system | – Manual control – Pump automatically shuts off when tank is full |
III. Outstanding advantages of Hino FG Sewage Truck 7m³
- Powerful, fuel-efficient engine: Japanese Hino technology helps the vehicle operate durably, with little damage and optimal fuel economy.
- High quality tank: Designed to be corrosion resistant, ensuring long life and safe operation.
- Efficient pumping system: Strong suction capacity, fast working time, meeting the need to collect large quantities of waste.
- Solid chassis: Sturdy chassis, suitable for many different types of terrain.
- Easy maintenance and repair: Parts are easy to find, low operating costs.
IV. Application of Hino FG Sewage Truck 7m³
- Collection of domestic and industrial wastewater
- Microbial sludge suction in wastewater treatment system
- Cleaning manholes and urban sewers
- Cleaning septic tanks and waste tanks in residential areas, factories and industrial parks
